• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab Models.)
• Audio system feature, speaker system (Included with (5B5) power windows, doors and locks, SEO. Includes 4 speakers on Regular Cab models and 6 speakers on Extended and Crew Cab models.)
• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio.)
• Coat hooks, rear driver and passenger side

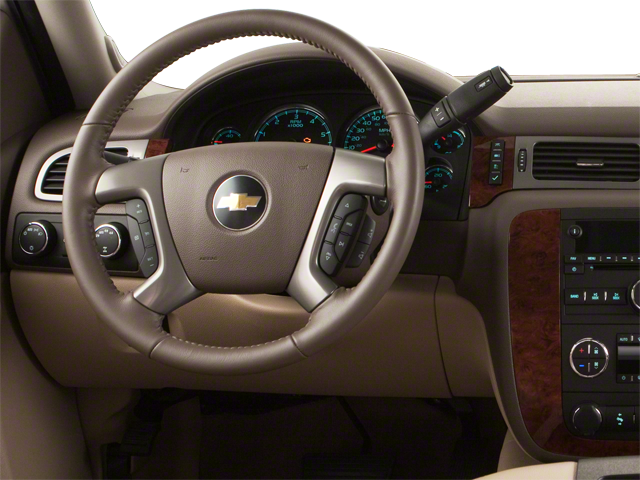

• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models. Rear cupholders are not included with (AE7) front 40/20/40 split-bench seat.)
• Floor covering, Black rubberized-vinyl
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seat Trim, Vinyl (Vinyl seats require (BG9) Black rubberized vinyl floor covering.)

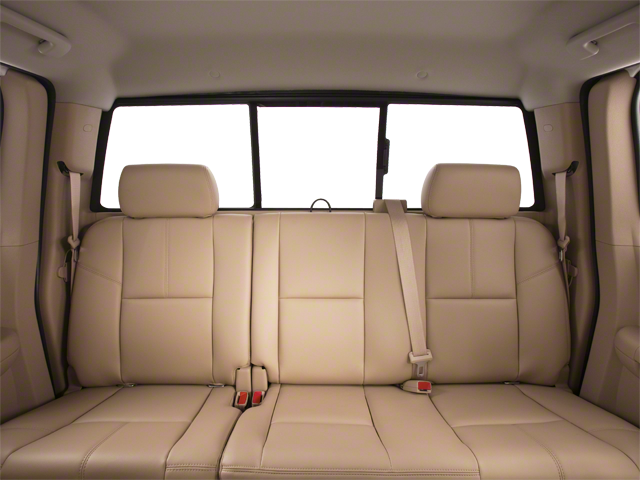

• Seat, rear bench (folds up), full width, folding, 3-passenger (includes child seat top tether anchor) (Standard with Extended Cab models only.)

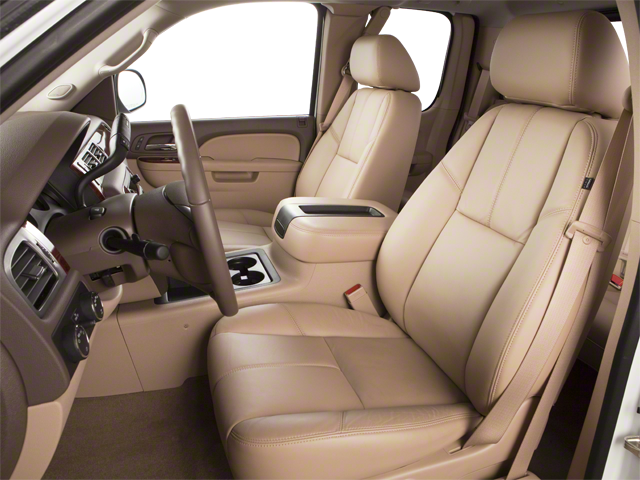

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• SiriusXM Satellite Radio, delete
• Steering wheel, includes theft-deterrent locking feature
• Visors, driver and front passenger, sliding, with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, fixed, rear access door (Requires Extended Cab Models.)

• Alternator, 145 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, front disc/rear drum
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• GVWR, 7000 lbs. (3175 kg) (Requires CK10753, CK10953 or CK10543 models.)
• Steering, power, rack-and-pinion
• Suspension Package, Solid Smooth Ride includes 35 mm piston twin tube shocks and 36mm front stabilizer bar
• Suspension, front independent, coil over shock
• Suspension, rear 2-stage multi-leaf springs, semi-elliptic
• Transfer case, with floor-mounted shifter (Requires 4WD models.)

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, front outboard seating positions with rollover sensor (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps, with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitor System (does not apply to spare tire)

REMOTE KEYLESS ENTRY

• with 2 transmitters and panic button
• Optional on all models when SEO (5B5) power windows
• locks and mirrors is ordered

SKID PLATE PACKAGE

• frame-mounted shields
• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

• with outboard head restraints and center fold-down armrest with storage (STD)

DOOR LOCKS, POWER

• includes Remote Keyless Entry

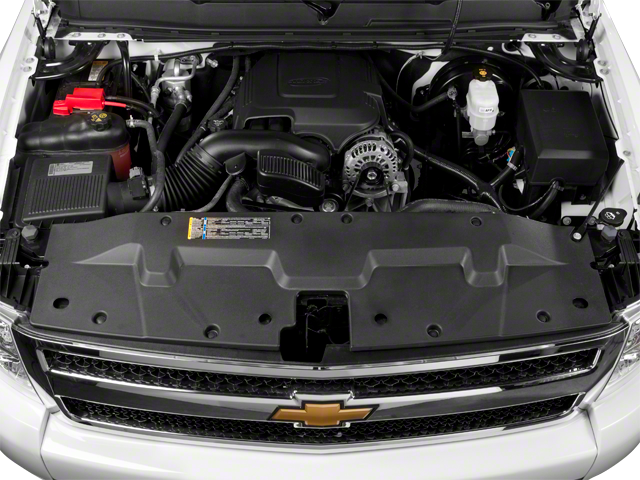

ENGINE, VORTEC 4.8L VARIABLE VALVE TIMING V8 SFI FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (302 hp [225.2 kW] @ 5600 rpm
• 305 lb-ft torque [411.8 N-m] @ 4600 rpm)
• iron block (STD)

LPO, FRONT AND REAR MOLDED SPLASH GUARDS, BLACK

• with Gold bowtie logo on rear

MIRRORS, OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE, BLACK

• with manual folding and extension and lower convex spotter glass

WHEELS, 4 - 17" X 7.5" (43.2 CM X 19.1 CM) STEEL, 6-LUG PAINTED

• includes painted center caps (spare wheel will not cosmetically match the other 4 wheels) (STD)

SPARE WHEEL, UPGRADE

• Replaces Black standard spare wheel and upgrades to a matching Silver steel road wheel

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, P265/70R17 ALL-SEASON, BLACKWALL

• includes a blackwall spare tire (STD)

SUSPENSION PACKAGE, HANDLING/TRAILERING, HEAVY-DUTY

• includes 46 mm piston monotube shocks and 36mm front stabilizer bar

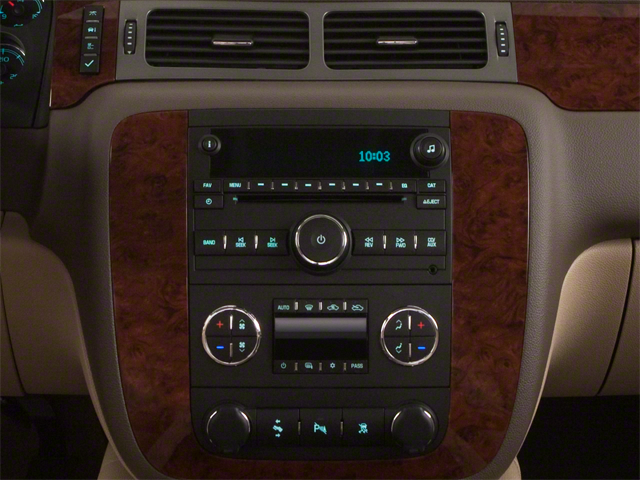

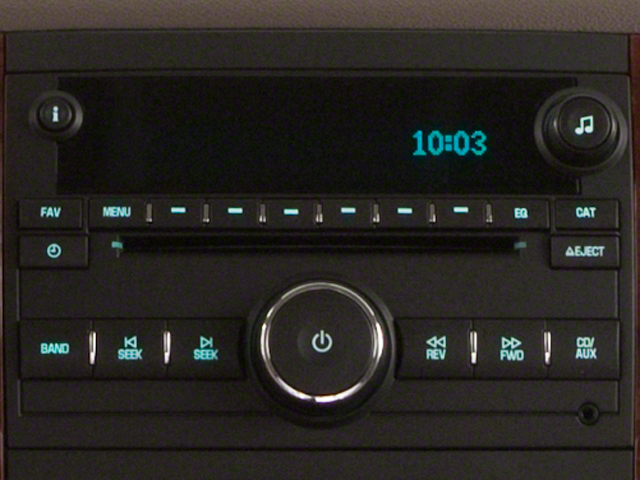

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

BATTERY, SINGLE 730 CCA

• Provides a 730 CCA HD cranking battery
• replacing the standard 600 CCA battery

• Work Truck Equipment Group
• 3.42 Rear Axle Ratio
• Heavy-Duty Rear Automatic Locking Differential
• 17" x 7.5" 6-Lug Painted Steel Wheels
• Front 40/20/40 Split-Bench Seat
• Vinyl Seat Trim
• AM/FM Stereo w/MP3 Compatible CD Player
• AM/FM Stereo w/Seek & Scan/Digital Clock
• Electric Rear-Window Defogger
• Power Door Locks w/Remote Keyless Entry
• Front & Rear Molded Splash Guards
• Black Camper-Style High-Visibility Outside Mirrors
• Provision for Cab Roof-Mounted Lamp/Beacon
• Skid Plate Package
• Solid Smooth Ride Suspension Package
• Heavy-Duty Handling/Trailering Suspension Package
• Integrated Trailer Brake Controller
• Heavy-Duty Trailering Package (Retail)
• Remote Keyless Entry w/2 Transmitters
• Heavy-Duty Auxiliary External Transmission Oil Cooler
• 6 Speaker Audio System Feature
• 6 Speakers

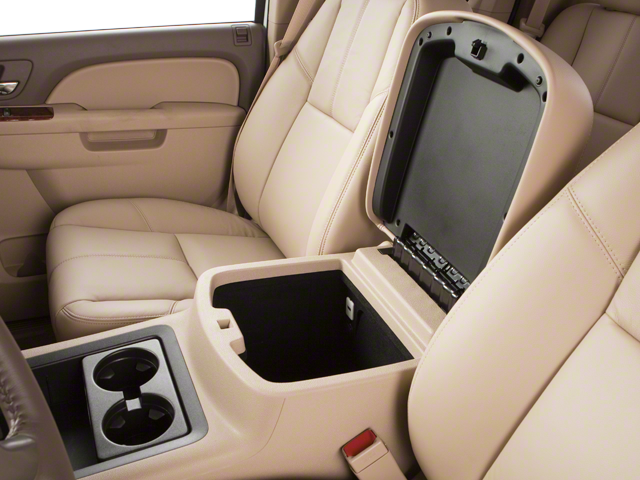

• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Speed control
• Rear step bumper
• Rear reading lights
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead console
• Overhead airbag
• Occupant sensing airbag
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• TRAILERING PACKAGE HEAVY-DUTY includes trailering hitch platform and 2-inch receiver 7- wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (KNP) external transmission oil cooler (with (MYC) 6-speed automatic transmission also includes (K5L) heavy-duty cooling package and (KC4) external engine oil cooler) Includes (Z85) Handling/Trailering Suspension Package. Also includes (G80) heavy-duty automatic locking rear differential on Retail orders only.)
• REMOTE KEYLESS ENTRY with 2 transmitters and panic button Optional on all models when SEO (5B5) power windows locks and mirrors is ordered
• SKID PLATE PACKAGE frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• DOOR LOCKS POWER includes Remote Keyless Entry
• ENGINE VORTEC 4.8L VARIABLE VALVE TIMING V8 SFI FLEXFUEL capable of running on unleaded or up to 85% ethanol (302 hp [225.2 kW] @ 5600 rpm 305 lb-ft torque [411.8 N-m] @ 4600 rpm) iron block (STD)
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER HEAVY-DUTY AIR-TO-OIL
• DEFOGGER REAR-WINDOW ELECTRIC
• LPO FRONT AND REAR MOLDED SPLASH GUARDS BLACK with Gold bowtie logo on rear
• MIRRORS OUTSIDE HIGH-VISIBILITY VERTICAL CAMPER-STYLE BLACK with manual folding and extension and lower convex spotter glass
• WHEELS 4 - 17" X 7.5" (43.2 CM X 19.1 CM) STEEL 6-LUG PAINTED includes painted center caps (spare wheel will not cosmetically match the other 4 wheels) (STD)
• SPARE WHEEL UPGRADE Replaces Black standard spare wheel and upgrades to a matching Silver steel road wheel
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an instrument panel-mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp. 30-amp nominal rating
• TRAILER BRAKE CONTROLLER INTEGRATED
• SUMMIT WHITE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES P265/70R17 ALL-SEASON BLACKWALL includes a blackwall spare tire (STD)
• PAINT SOLID
• REAR AXLE 3.42 RATIO
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 46 mm piston monotube shocks and 36mm front stabilizer bar
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• BACKUP ALARM 97 DECIBELS
• BATTERY SINGLE 730 CCA Provides a 730 CCA HD cranking battery replacing the standard 600 CCA battery
• DARK TITANIUM VINYL SEAT TRIM
• Four Wheel Drive
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Vinyl Seats
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Front Side Air Bag
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3176
• Curb Weight - Rear (lbs): 2098
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Maximum Trailering Capacity (lbs): 9600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-stage multi-leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.99 x 1.18
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.61 x 2.36
• Tires
• Front Tire Order Code: QVL
• Rear Tire Order Code: QVL
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2304
• Rear Tire Capacity (lbs): 2304
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.73
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Driver Side
• Exterior Dimensions
• Wheelbase (in): 143.50
• Length, Overall w/o rear bumper (in): 230.20
• Width, Max w/o mirrors (in): 79.90
• Height, Overall (in): 73.70
• Overhang, Front (in): 39.40
• Overhang, Rear w/o bumper (in): 47.20
• Front Bumper to Back of Cab (in): 141.40
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.40
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.00
• Ground Clearance, Rear (in): 11.80
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.70
• Cargo Box Width @ Top, Rear (in): 61.50
• Cargo Box Width @ Floor (in): 62.40
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.50
• Cargo Volume (ft³): 60.70
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 62.50
• Second Head Room (in): 39.20
• Second Leg Room (in): 34.30
• Second Shoulder Room (in): 65.30
• Second Hip Room (in): 61.90
• Summary

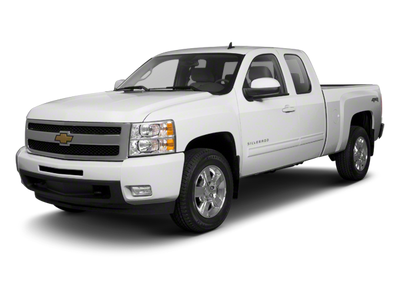

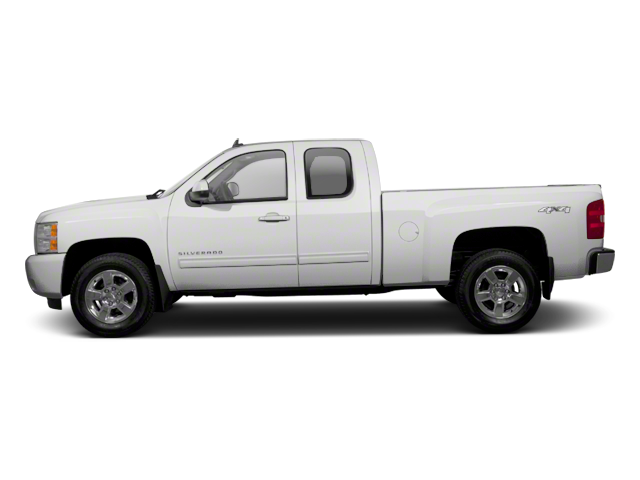

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Ext Cab 6.5' Wideside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.2
